OTKGlobeEngine

A lightweight, cross-platform C++ map engine modeled on the TAK map engine: a WGS84 globe draped with 2D imagery, 3D terrain, vector features, labels, 3D models and 3D Tiles.

Targets Windows, macOS, Linux (including the Raspberry Pi 4 and 5), Android, iOS and iPadOS from one codebase. Rendering goes through sokol_gfx (Direct3D 11, Metal, OpenGL 4.1, OpenGL ES 3) with shaders written once. CI builds all five targets on every push.

Website and downloads: https://grangedevgroup-code.github.io/OTKGlobeEngine/

docs/EMBEDDING.md covers using the engine from Android, iOS, macOS, Windows, C# and Qt. docs/FORMATS.md is the data import/export compatibility matrix, and docs/OFFLINE.md covers caching and airgapped networks. docs/PHOTOREALISM.md covers photogrammetry and photorealistic 3D Tiles, docs/XR.md VR, AR and stereo, and docs/MILITARY.md the military feature set.

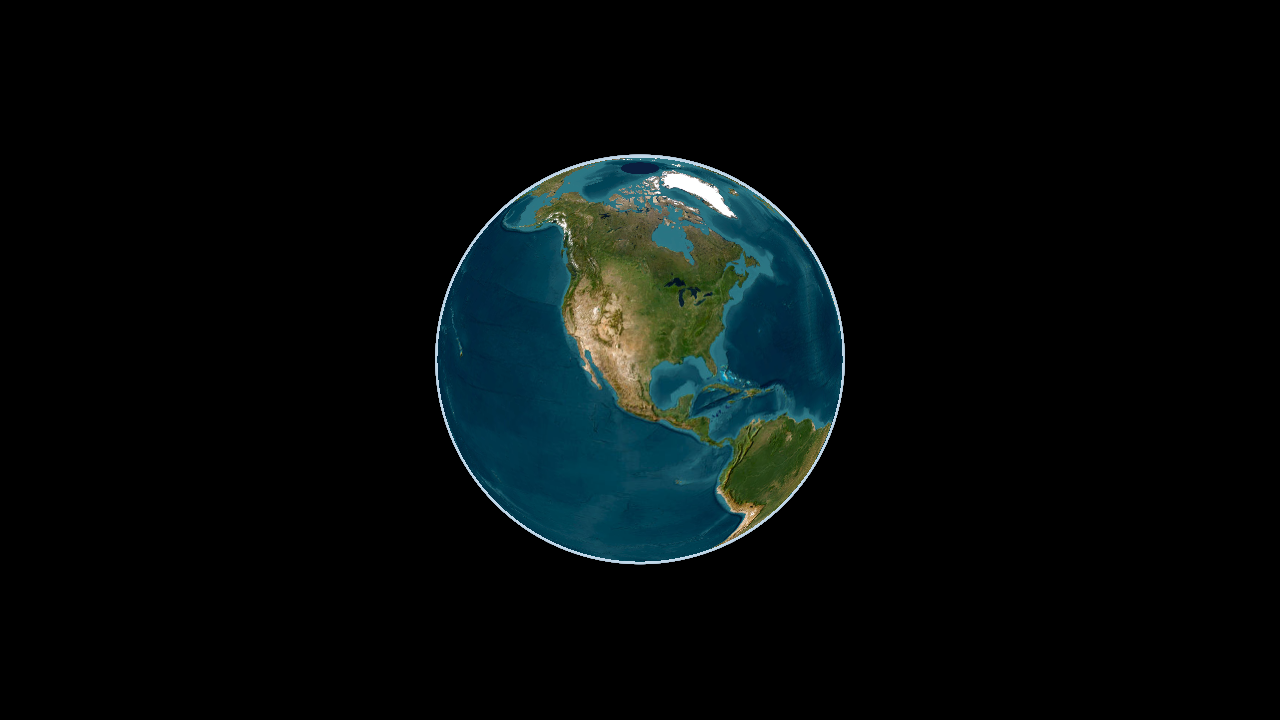

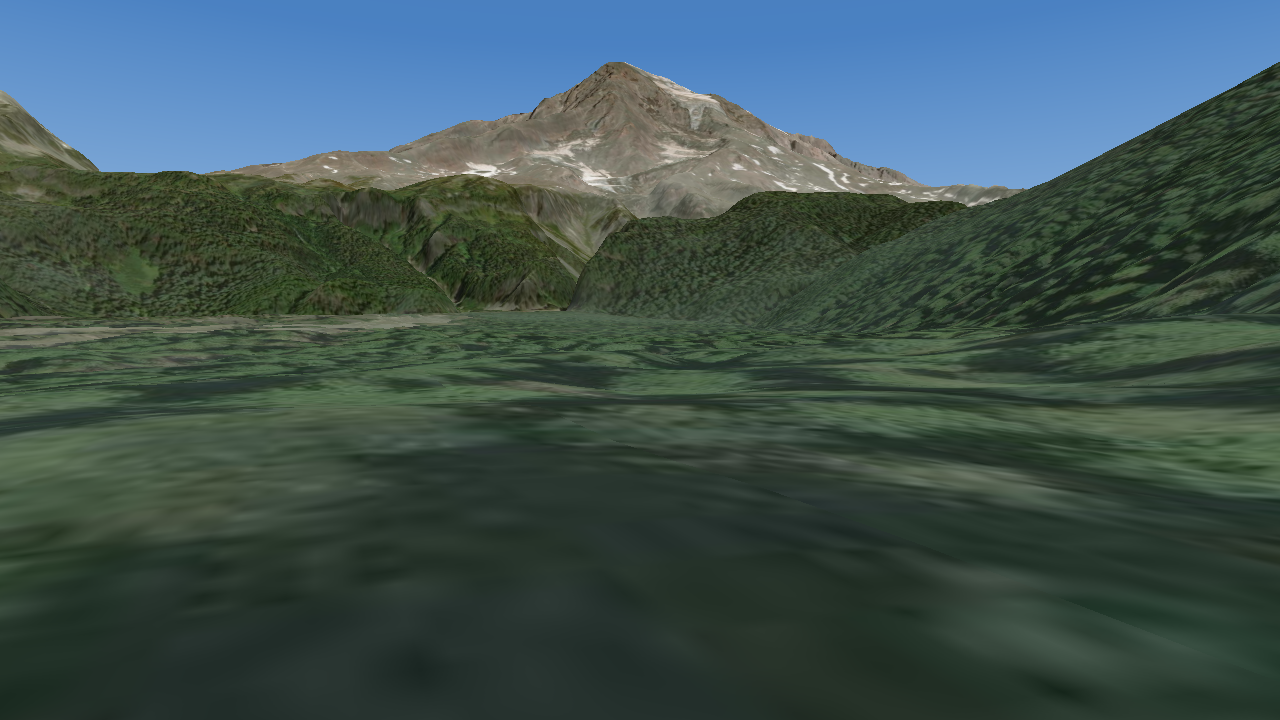

Globe	Terrain	First person

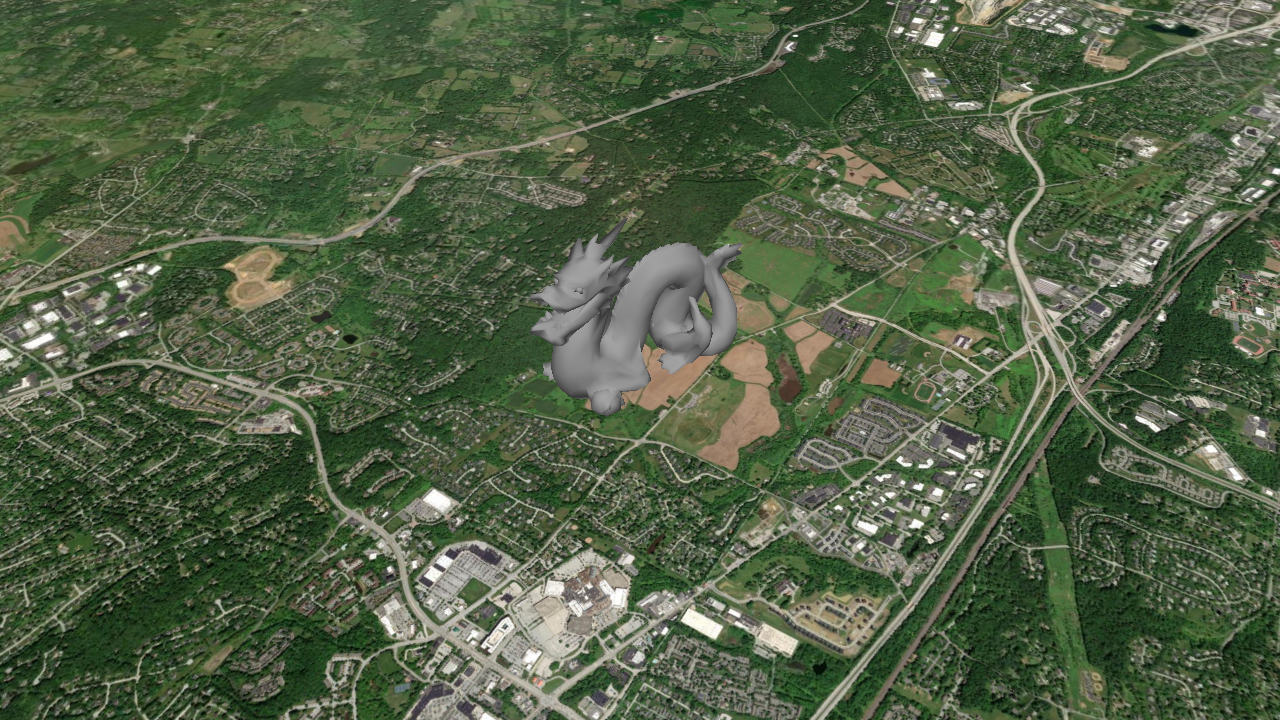

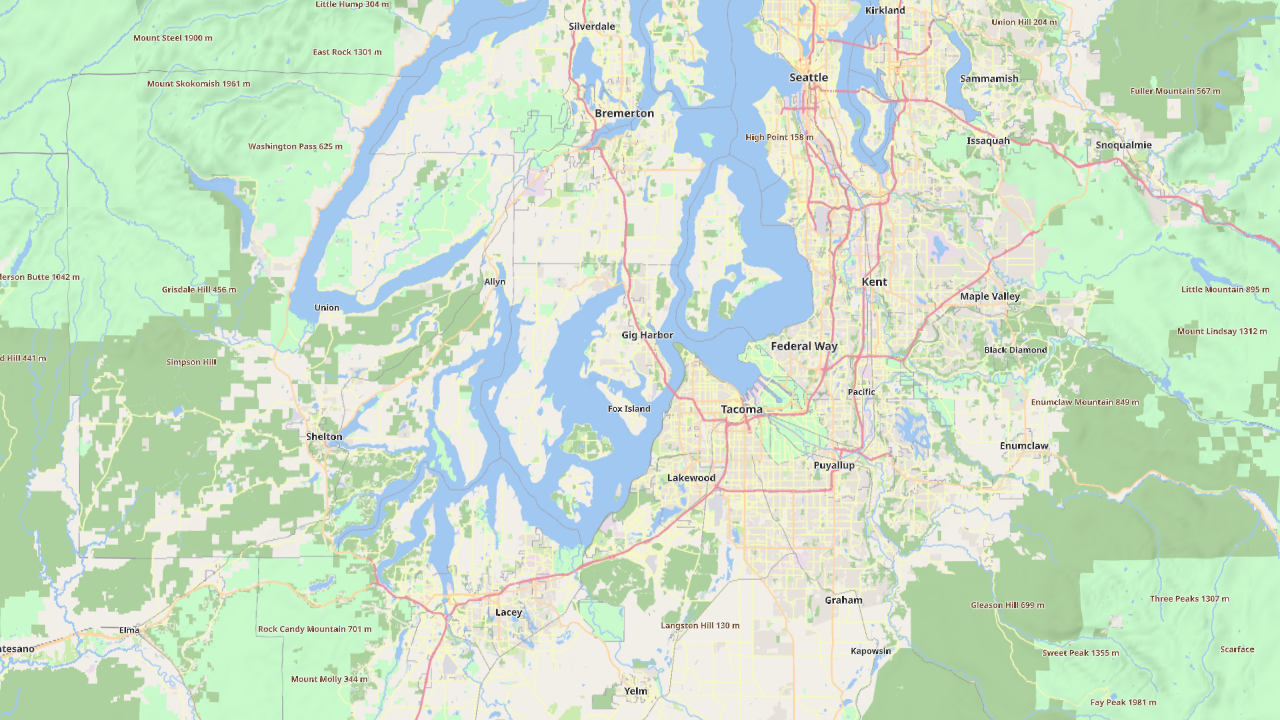

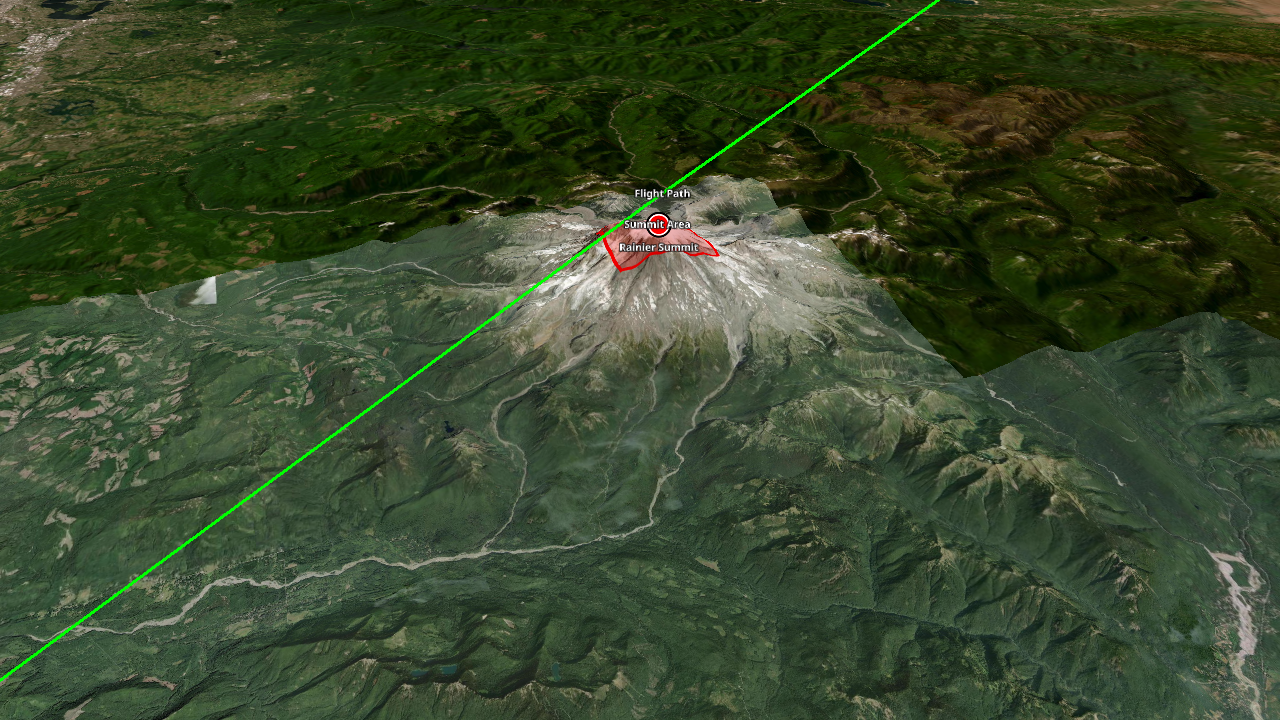

Vector tiles	3D Tiles	Features and labels

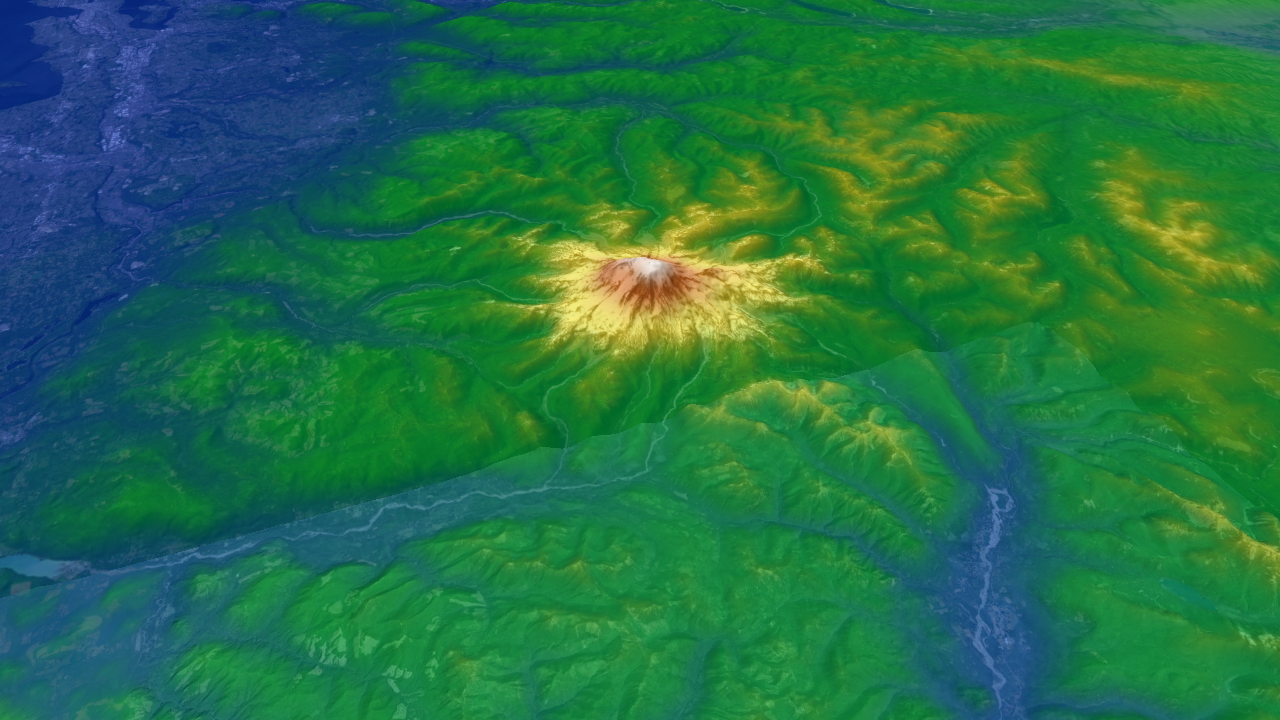

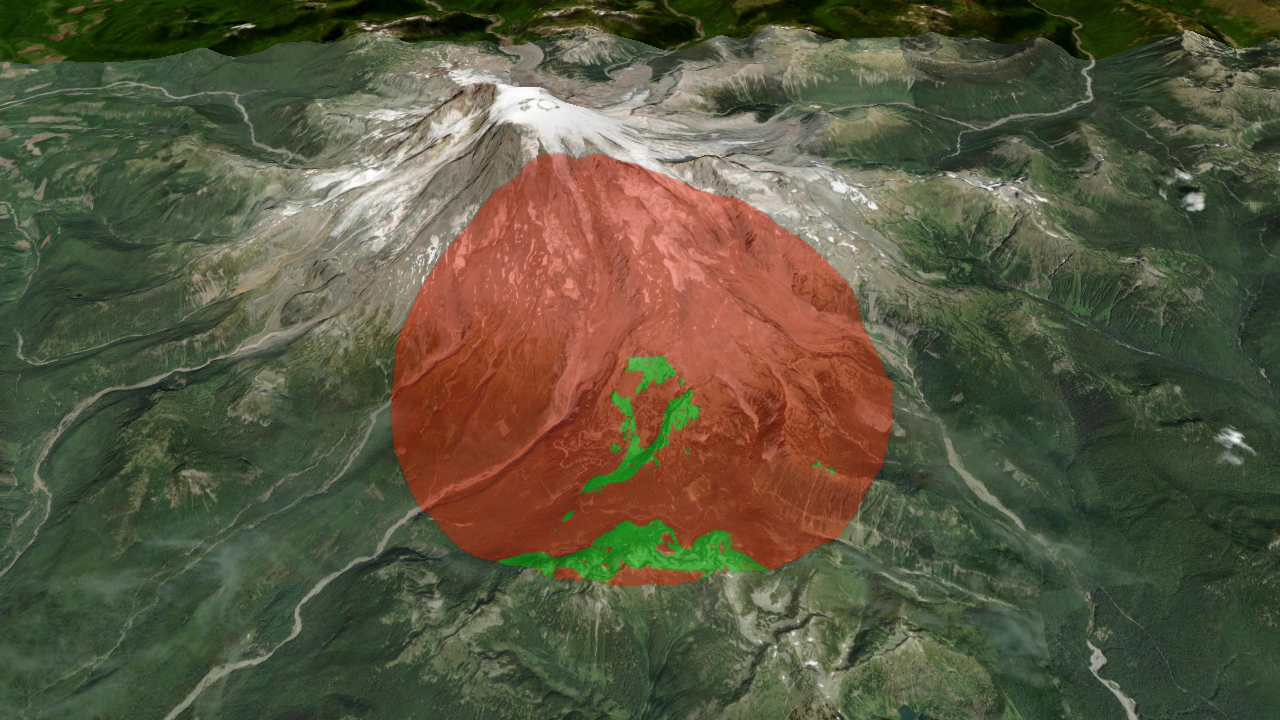

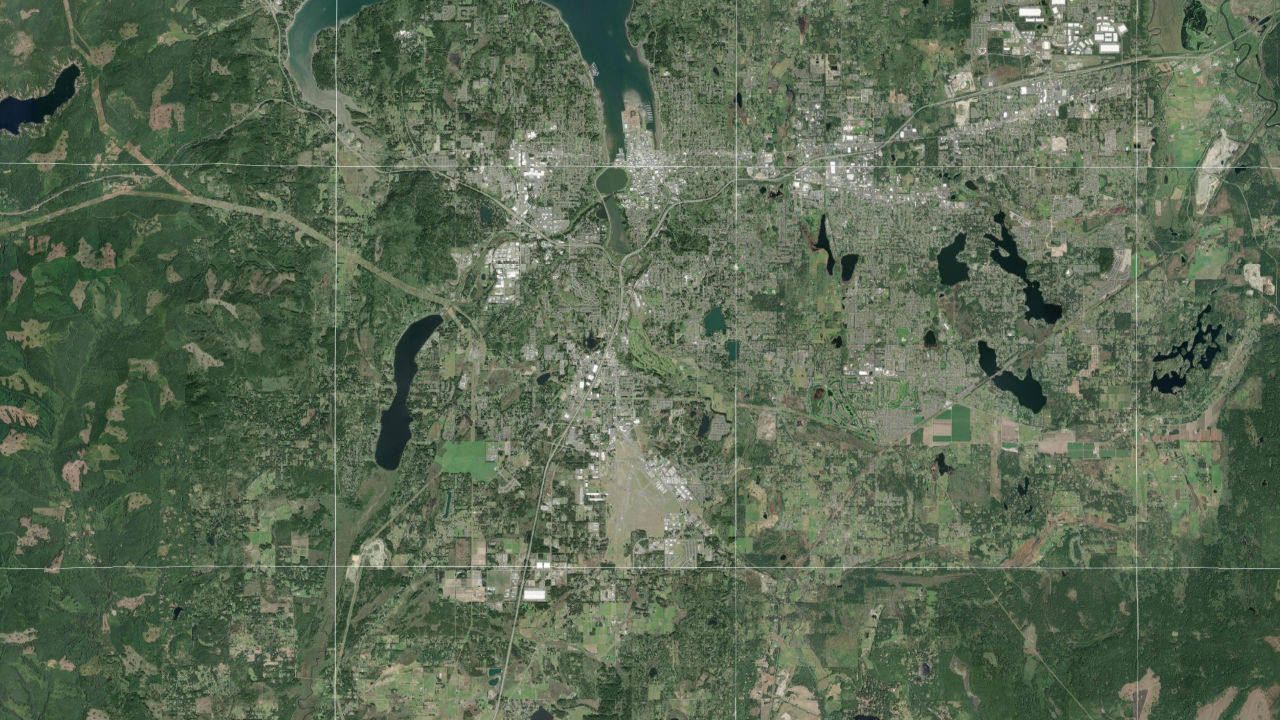

MGRS grid	Viewshed	Elevation heat map

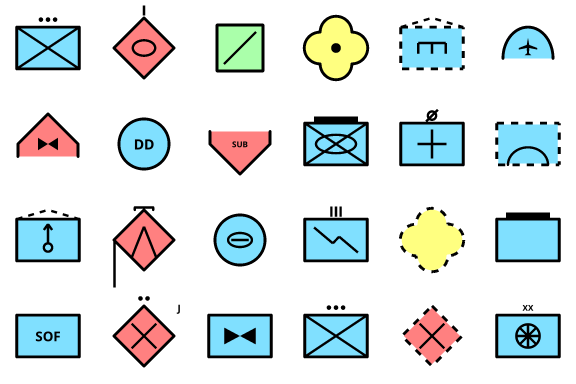

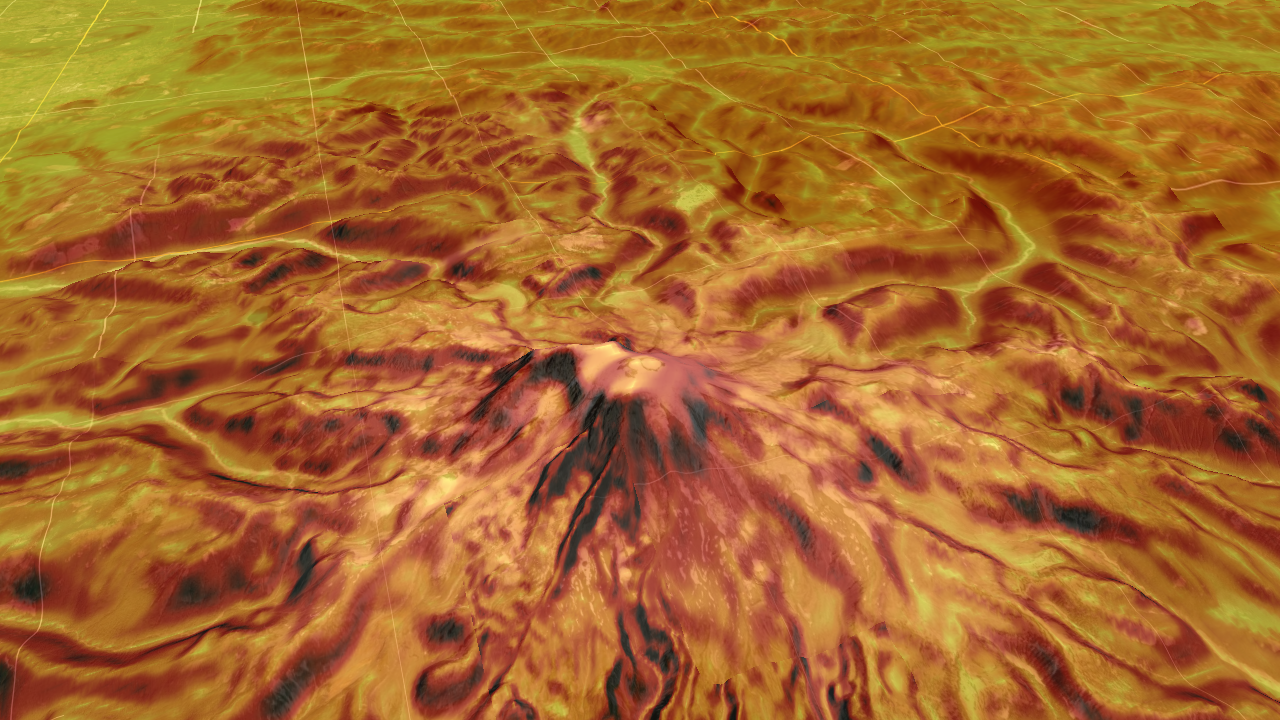

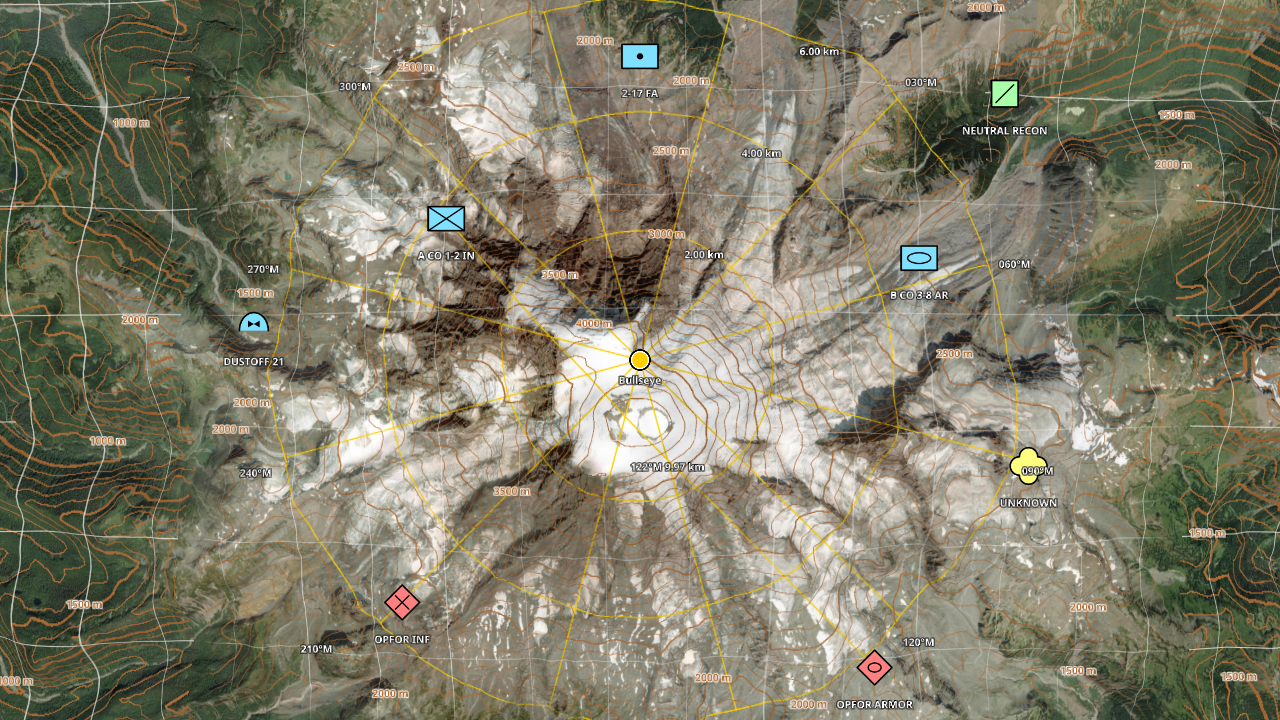

2525 units, contours, bullseye, R&B	Terrain slope	Airgapped, empty cache

Kernel and engine

The project builds two libraries, matching the split between the TAK kernel and the TAK map engine:

• Kernel (otk_kernel): GPU-free geospatial and data services that servers, tools and headless hosts can use without a display. Format detection, import and export (KML/KMZ, GeoJSON, GPX, Shapefile, CoT, CSV, WKT, GML, TAK data packages, ATAK iconsets, KLV); import planning (planImport decides how any file or folder should be loaded); feature queries by region, radius, CoT type, name, attributes and time (FeatureQuery); elevation queries, line of sight and profiles from any elevation source (ElevationService); MGRS, UTM, UPS, GARS and coordinate parsing; Vincenty geodesics and range-and-bearing shapes; WMM magnetic model; EGM96 geoid; sun and moon; MIL-STD-2525 symbol images; tile cache, offline mode and network access; tile archives (MBTiles, PMTiles, GeoPackage, osmdroid/RMaps/OsmAnd); OBJ and COLLADA to glTF conversion.
• Engine (otkglobeengine): the renderer on top of the kernel: globe, imagery, terrain, features, labels, models, 3D Tiles, point clouds, grids, input, plus Engine::open to load anything planImport understands and zoom-to-content helpers.

-DOTK_ENGINE=OFF builds only the kernel and its tests, with no graphics dependencies (Linux needs only libcurl).

Features

Globe and camera - TAK-style scene model: focus point, ground resolution, azimuth, tilt up to 84 degrees, terrain collision - 2D/3D toggle, first-person mode (walk and look at eye height), animated fly-to - Atmosphere and sky from ground level to space

Imagery - Online XYZ, TMS, quadkey, WMS 1.1.1/1.3.0 (EPSG:3857 and 4326), WMTS templates, MOBAC XML (including multi-layer and WMS sources); Cesium, MapLibre and Leaflet URL placeholders ({reverseY}, {westDegrees}, {bbox-epsg-3857}, {quadkey}, {r} and more); custom request headers for keys and referers - Offline MBTiles, PMTiles v3, GeoPackage tiles (any tile matrix), osmdroid, RMaps/BigPlanet and OsmAnd SQLite, and GeoTIFF/NITF/MrSID/JPEG2000/GeoPDF/CADRG via the optional GDAL module - SQLite tile cache with offline mode and fallback, region download - Mapbox Vector Tiles (TileJSON or MBTiles) rendered on the GPU with place, peak and water labels - file:// URL templates for offline {z}/{x}/{y} tile folders - Layer stacking with opacity, KML/KMZ ground overlays, arbitrary image overlays

Terrain - WGS84 quadtree, 33x33 post meshes with skirts, screen-space-error LOD, slope shading ("enhanced depth perception"), exaggeration, x-ray transparency - Terrarium elevation tiles; Cesium terrain from layer.json, {z}/{x}/{y} templates or Cesium ion (quantized-mesh-1.0 and heightmap-1.0, tile availability, token refresh); DTED 0-3 and SRTM HGT folders, GDAL DEMs, EGM96 geoid (heights are HAE) - Line of sight, viewshed, elevation profile, elevation heat map

Vectors, labels and models - Built-in world labels, styled like a satellite map with labels: country, state and province, and county lines, and the names of countries, states, provinces, counties, cities, towns and villages worldwide, placed by importance with decluttering. One switch (Engine::setLabelsEnabled, otk_set_labels), on by default and fully offline: the data is inside the engine (about 9.5 MB, -DOTK_LABELS=OFF leaves it out). The kernel's otk::placesNear looks up nearby towns from the same data. - KML/KMZ (styles, style maps, icons, MultiGeometry, gx:Track, NetworkLink with view-based refresh, Model, extrude), GeoJSON (simplestyle), GPX, Shapefile (reprojected from its .prj: UTM, State Plane, Albers, Mercator), plus any OGR format via GDAL - CoT with ATAK iconsets (usericon), range and bearing lines, dashed and dotted strokes - Ground-clamped lines and polygons draped into the terrain texture, 3D lines, extruded walls and raised polygons, icons, SDF labels with decluttering, hit testing - Zoom to content: loadData returns the features, overlays and models a file added with their extent, featuresRegion, tilesetRegion and pointCloudRegion give extents, and viewForRegion frames any region - MGRS/UTM conversions and a draped MGRS grid - glTF/GLB, OBJ/MTL and COLLADA models, OGC 3D Tiles 1.0/1.1 (tileset.json, .3tz, URLs, external and implicit tilesets, b3dm, i3dm, pnts, cmpt, glb/glTF; Draco, meshopt and KTX2 compression; GPU instancing), LAS point clouds (WGS84 and UTM natively, any CRS through the GDAL module) - Photorealistic 3D Tiles from Google and Cesium ion (ion:// URIs, token refresh, on-screen credits) or your own photogrammetry; metallic-roughness materials with normal, emissive and occlusion maps, unlit photogrammetry, lighting by the real sun for a given time - VR and AR hosts: frameXr renders any number of OpenXR-style eye views with one tile update per frame, table-top scale, side-by-side stereo (docs/XR.md)

Military - MIL-STD-2525C and 2525D point symbols drawn by the engine: affiliation frames and colours for space, air, ground, sea surface, subsurface and SOF; planned and assumed friend/suspect/pending dashed frames; echelon, headquarters staff, task force, feint/dummy and installation amplifiers; joker/faker/exercise markers; common unit, equipment, air, sea and subsurface icons. CoT a- types (and Style::sidc) become 2525 icons automatically (sheet). - WMM2025 magnetic declination and inclination (matches the NOAA test values), UTM grid convergence, bearings in true/magnetic/grid north, degrees or NATO mils - Coordinates: decimal, DM, DMS, MGRS (including polar UPS), UTM/UPS and GARS formatting, and a parser that accepts all of them - Vincenty geodesics (inverse, direct, densified paths, area), range rings, bullseye, range and bearing lines, sectors, ellipses and geodesic circles as features - Contour lines from loaded elevation (MSL, major/minor with labels), terrain slope shading, MGRS, lat/lon and GARS grids - Sun and moon position, moon phase and illumination, BMNT/EENT and other twilight times, moonrise/moonset and ground illuminance in lux for night-vision planning - UAS full-motion video metadata: MISB ST 0601 KLV from MPEG-TS or raw KLV becomes sensor and frame-centre tracks, image footprints and line of sight - Tracks past their CoT stale time are drawn faded

Loading behaviour - Continuous level of detail: toward the edge of its detail range each surface takes on its parent's colours while keeping its own fine detail, so imagery levels coloured differently by the provider blend without tile edges, and refining or merging does not pop (Engine::setLodMorph, 0 to 1) - Missing tiles are drawn from the nearest loaded ancestor, never blank; new and upgraded tiles cross-fade, and the most urgent decoded tiles reach the GPU first - Parent, child and zoom-out prefetch inside a GPU memory budget (512 MB desktop, 256 MB mobile by default) - Separate local (cache, files) and network loader pools - Airgap-ready cache: expired tiles shown instantly and refreshed in the background, unreachable hosts fail fast and are re-probed, pinned region downloads that wait out outages, size limit, MBTiles/GeoPackage export and import into the cache, built-in world backdrop where nothing is cached (docs/OFFLINE.md)

Size and speed - The whole engine is about 4 MB (Windows DLL; Android arm64 library 4 MB, 1.8 MB compressed; the Android viewer APK is 1.8 MB) including SQLite, image decoders, the label font and the geoid; the built-in world labels add 9.5 MB (-DOTK_LABELS=OFF leaves them out) - CPU time per frame on a 2015 desktop i5: 0.2 ms (globe), 0.5 ms (street), 0.9 ms (tilted terrain), 1.1 ms (first person)

Bindings - C ABI include/otk/otk.h and otkglobeengine_c shared library - Android AAR with OTKGlobeView (scripts/android_aar.py), Swift OTKGlobeView and xcframework (scripts/apple_xcframework.sh), C# wrapper (bindings/dotnet)

Install

Releases on GitHub carry ready-made packages:

The desktop packages contain the C ABI as a shared library (otk.h), the viewer, the documentation and the license texts of bundled libraries. Use them from CMake with find_package(OTKGlobeEngine) and target_link_libraries(app PRIVATE OTKGlobeEngine::otkglobeengine_c), or through pkg-config otkglobeengine. The C++ API is used by building the engine from source (add_subdirectory or FetchContent). SHA256SUMS.txt lists checksums for every file.

Build

Windows (Visual Studio 2022 or newer, CMake 3.24+, Ninja):

build.cmd
build\windows\apps\viewer\otk_viewer.exe

Linux: cmake -S . -B build -G Ninja && cmake --build build (libcurl, X11, Xi, Xcursor and OpenGL development packages; add -DOTK_WITH_GDAL=ON and libgdal-dev for the GDAL module).

Raspberry Pi 4 and 5 (64-bit Raspberry Pi OS Bookworm or newer): their GPUs run OpenGL ES 3.1, so build with -DOTK_GLES=ON (sudo apt install cmake ninja-build libcurl4-openssl-dev libx11-dev libxi-dev libxcursor-dev libegl-dev libgles-dev). Releases include a ready-made raspberrypi-arm64 package: sudo apt install ./otkglobeengine-VERSION-raspberrypi-arm64.deb.

FreeBSD, OpenBSD and NetBSD: sh scripts/bsd_build.sh installs the build dependencies (cmake, ninja, curl, X11 and Mesa), builds and runs the tests; OTK_PACKAGE=1 also makes the packages. sokol-shdc has no BSD binaries, so these hosts use the GLSL 4.1 shader headers checked in under src/render/shaders/generated (cmake --build build --target otk_pregenerate_shaders refreshes them; CI fails when they are stale).

macOS: cmake -S . -B build -G Ninja && cmake --build build. iOS: cmake -S . -B build -G Xcode -DCMAKE_SYSTEM_NAME=iOS.

Android: python scripts/android_apk.py --install --run builds, signs and installs a standalone viewer APK (needs the Android SDK and NDK).

OpenGL on Windows (to check the GL path used on Linux and Android): add -DOTK_GFX_BACKEND=SOKOL_GLCORE -DOTK_SHDC_LANG=glsl410 to the CMake configure.

Kernel only (headless servers and tools): cmake -S . -B build -G Ninja -DOTK_ENGINE=OFF && cmake --build build.

Tests: ctest --test-dir build/windows runs the kernel tests (otk_kernel_test, linked against the kernel alone) and the engine unit tests (geodesy, MGRS, tile matrices, camera, geoid, file parsers, quantized mesh); CI runs them on Windows, Linux, macOS, FreeBSD, OpenBSD and NetBSD, and builds the kernel on its own without graphics packages.

Packages: cpack --config build/CPackConfig.cmake makes the platform packages.

Viewer

otk_viewer [file or folder ...] [--view lat,lon,gsd,tilt,azimuth] [--preset 0..3] [--size WxH]
           [--mbtiles f] [--gpkg f] [--osmdroid f] [--gdal f] [--mobac xml]
           [--features file] [--model path,lat,lon,heading,scale] [--tileset dir|.3tz|url|ion://id?access_token=t] [--las file]
           [--stereo eye_separation_m (0 = auto)] [--sun unix_seconds|now]
           [--elevation-dir dir] [--gdal-dem f] [--quantized-mesh url] [--terrain 0|1] [--exaggeration x]
           [--cache dir] [--offline 1] [--cache-limit MB] [--import file] [--export w,s,e,n,minz,maxz,file]
           [--memory MB] [--labels 0|1] [--grid 1] [--grid-type 0|1|2] [--heatmap 1] [--slope 1] [--contours interval]
           [--bullseye lat,lon,radius] [--rings lat,lon,spacing,count] [--rb lat1,lon1,lat2,lon2]
           [--first-person heading,pitch[,height]] [--download w,s,e,n,minz,maxz]
           [--shot out.png] [--shot-timeout s] [--script file] [--film dir] [--film-every s]
           [--zoom-test lat,lon,gsd,tilt,az,seconds] [--zoom-start s] [--diag 1]

• Drop files or folders on the window, or pass them as arguments, to open them: KML/KMZ (with overlays and models), GeoJSON, GPX, Shapefile, CoT, CSV, GML, TAK data packages, ATAK iconsets, MBTiles, PMTiles, GeoPackage, osmdroid/RMaps/OsmAnd archives, MOBAC sources, DTED/HGT files or folders, Cesium terrain folders, 3D Tiles, LAS, glTF/OBJ/COLLADA models (placed at the view centre) and, with GDAL, GeoTIFF imagery and DEMs. The view flies to what was loaded and the title bar reports what was added.
• Input is handled by the engine's shared controller (engine.input(), otk_pointer_* in the C ABI), so every host behaves the same:
• Mouse: left drag pans (with inertia), wheel zooms at the cursor, right or middle drag (or Ctrl/Alt + left) rotates and tilts, double click zooms in; Shift + wheel tilts, Alt + wheel rotates.
• Touch and pen: one finger pans with fling, pinch zooms about the fingers, twist rotates past a 10° threshold, two-finger vertical drag (or three fingers) tilts, double tap zooms in, double-tap-and-drag zooms continuously, two-finger tap zooms out, long press reports a callback. Windows touchscreens and pens use WM_POINTER.
• Trackpads: pinch (magnify) zooms and rotate rotates on macOS and iPad; precise two-finger scroll pans.
• Keys: arrows or W/A/S/D pan (walk in first person), +/- zoom, Q/E rotate, PageUp/PageDown tilt, N north up, T level the camera.
• Panning keeps the current heading; only explicit rotation changes it. The poles are reachable at any zoom without the view spinning.
• Viewer keys: 1-4 imagery presets (satellite, satellite + USGS topo, OpenStreetMap, vector tiles), R reset north and tilt, I labels (borders and place names), Y terrain, O exaggeration, U depth shading, H heat map, G grid (MGRS, lat/lon, GARS, off), K terrain slope, L contours for the view, B bullseye at the cursor, C range and bearing (press at both ends), V viewshed at the cursor, F fly to Mount Rainier, M 2D/3D, P first person, X terrain x-ray.
• --shot renders offscreen until everything has loaded, writes the PNG plus a .txt with statistics, and exits. --zoom-test flies to a view and reports incomplete, coarse (two or more levels of fallback) and blank frames; --zoom-start s starts it after a fixed delay. --script plays timed input from a file (seconds wheel x y notches, seconds drag x0 y0 x1 y1 duration, seconds view lat lon gsd tilt azimuth) during a --shot, and --film saves half-size frames every --film-every seconds with a film.csv of pending loads. --diag 1 logs subtree collapses and deep-fallback tiles.
• On Android the viewer also reads arguments from Android/data/com.otkglobeengine.viewer/files/args.txt and logs statistics under the logcat tag OTKGlobeEngine.
• Environment: OTK_LOD_MORPH=0..1 level-of-detail colour blend (1 by default, 0 off; always off on software rasterizers such as llvmpipe), OTK_TRACE=file per-frame trace, OTK_WATCHDOG=file main-thread stack dump on a 3 s stall, OTK_LOG=file sokol validation messages, OTK_PROFILE=file per-section CPU times, OTK_PERF=file frame and cache statistics, OTK_NET_DELAY_MS / OTK_NET_JITTER_MS / OTK_NET_FAIL_RATE / OTK_NET_TIMEOUT_RATE / OTK_NET_CORRUPT_RATE / OTK_NET_404_RATE / OTK_NET_UNREACHABLE network fault injection.

License

BSD Zero Clause (LICENSE): use, copy, modify, sell or relicense OTKGlobeEngine for any purpose. No attribution, copyright notice or engine name is required.

Bundled libraries and data keep their own licenses, listed with what each asks for in docs/THIRD_PARTY.md. OTKGlobeEngine is written independently. The upstream TAK engine (GPLv3) was studied for behaviour and architecture only; no upstream code is included.

Security

See SECURITY.md for how to report a vulnerability.
